Common Integrated Circuits L298N Circuit Dual Full Bridge Driver

Brand Name : STMICROELECTRONICS
Model Number : L298N
Certification : Original Factory Pack
Place of Origin : Malaysia
MOQ : 20pcs
Price : Negotiation
Payment Terms : T/T, Western Union,PayPal
Supply Ability : 780PCS
Delivery Time : 1 Day
Packaging Details : please contact me for details
Operating Volatage : 46 V
DC current : 4 A
Temperature : –25 to 130 °C
Total Power Dissipatio : 25W
Main Line : Ic,module,transistor,diodes,capacitor,resistor Etc
Package : ZIP-15
Contact Now

Common Integrated Circuits L298N Circuit Dual Full Bridge Driver


DUAL FULL-BRIDGE DRIVER


. OPERATING SUPPLY VOLTAGE UP TO 46 V

. TOTAL DC CURRENT UP TO 4 A

. LOW SATURATION VOLTAGE

. OVERTEMPERATURE PROTECTION

. LOGICAL ”0” INPUT VOLTAGE UP TO 1.5 V

(HIGH NOISE IMMUNITY)


DESCRIPTION

The L298 is an integrated monolithic circuit in a 15- lead Multiwatt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designedto acceptstandardTTL logic levels anddrive inductive loads such as relays, solenoids, DC and steppingmotors. Two enableinputs are providedto enableor disablethe deviceindependentlyof theinput signals. The emitters of the lower transistors of each bridge are connected togetherand the correspondingexternalterminal can be used for the connectionofanexternalsensingresistor.Anadditional supplyinput is provided so that the logic works at a lower voltage.

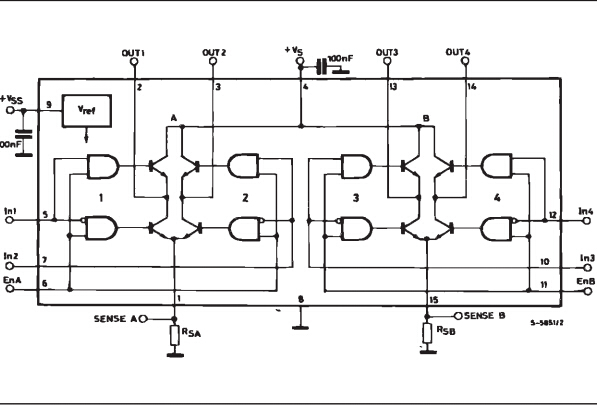

BLOCK DIAGRAM


PIN CONNECTIONS (top view)


ABSOLUTE MAXIMUM RATINGS

SymbolParameterValueUnit
VSPower Supply50V
VSSLogic Supply Voltage7V
VI,VenInput and Enable Voltage–0.3 to 7V
IO

Peak Output Current (each Channel)

– Non Repetitive (t = 100µs)

–Repetitive (80% on –20% off; ton = 10ms)

–DC Operation

3

2.5

2

A

A

A

VsensSensing Voltage–1 to 2.3V
PtotTotal Power Dissipation (Tcase = 75°C)25W
TopJunction Operating Temperature–25 to 130°C
