MT8870DE Very Large Scale Integrated Circuits Ics Complete DTMF Receiver

Brand Name : MITEL
Model Number : MT8870DE
Certification : Original Factory Pack
Place of Origin : Morocco
MOQ : 100pcs
Price : Negotiation
Payment Terms : T/T, Western Union,PayPal
Supply Ability : 6000PCS
Delivery Time : 1 Day
Packaging Details : please contact me for details
DC Power Supply Voltage : 7 V
Voltage on any pin : VSS-0.3 VDD+0.3 V
Current at any pin (other than supply) : 10 mA
Storage temperature : -65 +150 °C
Package power dissipation : 500 mW
Crystal/Clock Freq.Tolerance : ±0.1 %
Contact Now

MT8870DE Very Large Scale Integrated Circuits Ics Complete DTMF Receiver


Features

• Complete DTMF Receiver

• Low power consumption

• Internal gain setting amplifier

• Adjustable guard time

• Central office quality

• Power-down mode

• Inhibit mode

• Backward compatible with MT8870C/MT8870C-1


Description

The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tonepairs into a 4-bit code. External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface.


Applications

• Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)

• Paging systems

• Repeater systems/mobile radio

• Credit card systems

• Remote control

• Personal computers

• Telephone answering machine

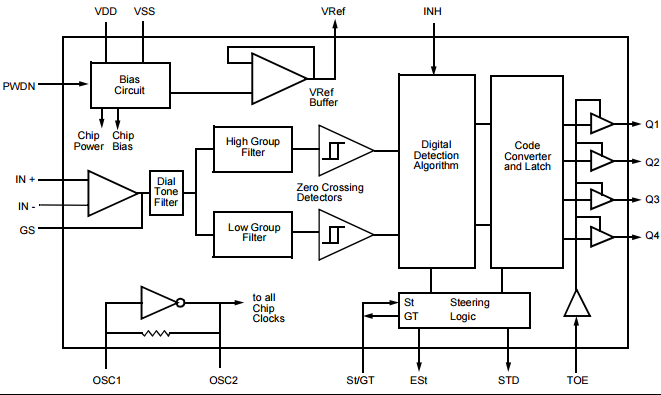

Figure 1 - Functional Block Diagram

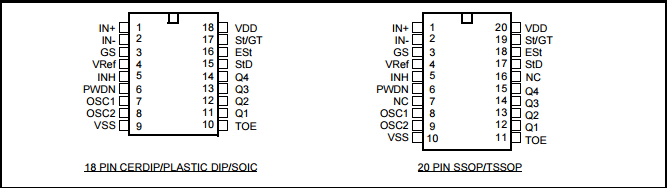

Figure 2 - Pin Connections


Functional Description​


The MT8870D/MT8870D-1 monolithic DTMF receiver


offers small size, low power consumption and high


performance. Its architecture consists of a bandsplit


filter section, which separates the high and low group


tones, followed by a digital counting section which


verifies the frequency and duration of the received


tones before passing the corresponding code to the output bus.
