Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T

Anterwell Technology Ltd.
Contact Now

Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T

Brand Name : Vishay

Model Number : SS34-E3-57T

Certification : Original

Place of Origin : Original

MOQ : 5 PCS

Price : 0.1USD

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000PCS/DAY

Delivery Time : 1 day

Packaging Details : contact us for more details

Terminals : Matte tin plated leads

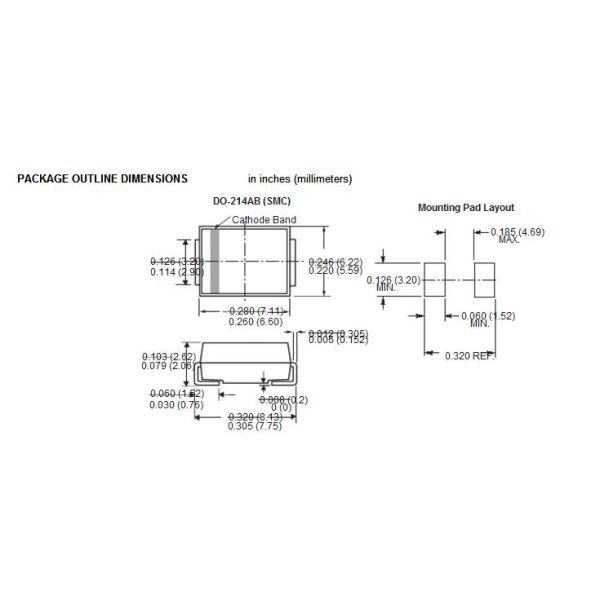

Case : DO-214AB (SMC)

Application : dc-to-dc converters

Features : Low profile package

Polarity : Color band denotes the cathode end

Type : RECTIFIER

Contact Now

SS34-E3-57T Surface Mount Schottky Barrier Rectifier
FEATURES Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
DO-214AC (SMA)
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in low voltage, high frequency inverters,
freewheeling, dc-to-dc converters, and polarity
protection applications.
1.0 A
PRIMARY CHARACTERISTICS Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class
1A whisker test, HE3 suffix for high reliability grade
(AEC Q101 qualified), meets JESD 201 class 2
whisker test
Polarity:
Color band denotes the cathode end
PREFERRED P/N
UNIT WEIGHT (g)
PREFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
SS14-E3/61T
0.064
61T
1800
7" diameter plastic tape and reel
SS14-E3/5AT
0.064 5AT 7500 13" diameter plastic tape and reel
SS14HE3/61T(1)
0.064 61T 1800 7" diameter plastic tape and reel
SS14HE3/5AT(1)
0.064 5AT 7500 13" diameter plastic tape and reel

Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T
Surface Mount Schottky Barrier Rectifier Vishay General Semiconductor SS34-E3-57T
