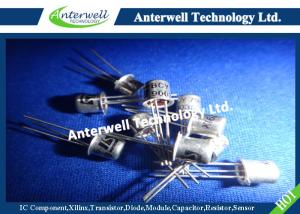

New & Original PNP switching transistors BCY79IX

Anterwell Technology Ltd.
Contact Now

New & Original PNP switching transistors BCY79IX

Brand Name : Anterwell

Model Number : BCY79IX

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8600pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

collector-base voltage BCY78 : -32 V (MAX)

collector-base voltage BCY79 : -45 V (MAX)

collector-emitter voltage BCY78 : -32 V (MAX)

collector-emitter voltage BCY79 : -45 V (MAX)

collector current (DC) : -100 mA (MAX)

transition frequency : 100 MHz (MIN)

Contact Now

BCY78; BCY79

PNP switching transistors

FEATURES PINNING

• Low current (max. 100 mA)

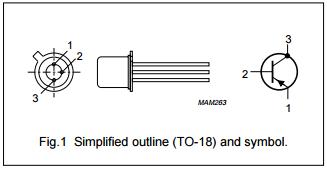

PIN DESCRIPTION
1 emitter
2 base
3 collector, connected to case

• Low voltage (max. 45 V).

APPLICATIONS

• Switching and amplification.

DESCRIPTIONNew & Original PNP switching transistors BCY79IX

PNP switching transistor in a TO-18 metal package.

NPN complements: BCY58 and BCY59.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

VCBO

collector-base voltage

BCY78

BCY79

open emitter

--

--

-32

-45

V

V

VCEO

collector-emitter voltage

BCY78

BCY79

open base

--

--

-32

-45

V

V

IC collector current (DC) -- -100 mA

Ptot

total power dissipation

Tamb ≤ 45 °C -- 340 mW
Tcase ≤ 45 °C -- 1 W
hFE

DC current gain

BCY78/VII; BCY79/VII

BCY78/VIII; BCY79/VIII

BCY78/IX; BCY79/IX

BCY78/X

IC = −2 mA; VCE = −5 V

120

180

250

380

220

310

460

630

fT transition frequency IC = −10 mA; VCE = −5 V 100 -- MHz
toff turn-off time

ICon = −100 mA; IBon = −10 mA;

IBoff = 10 mA

-- 400 ns

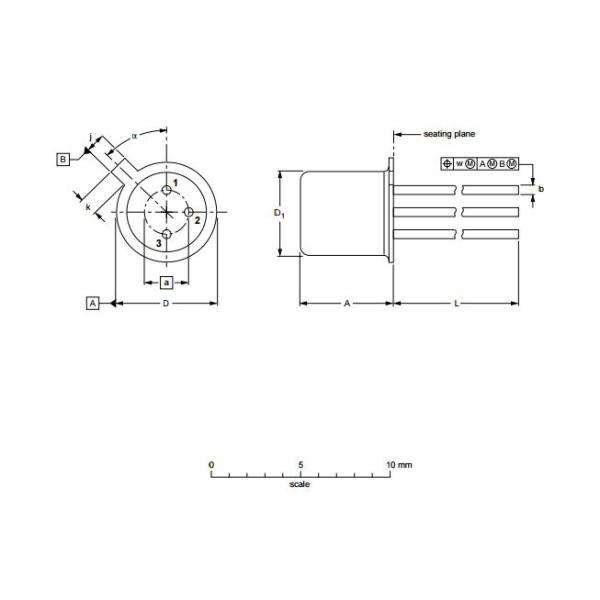

PACKAGE OUTLINE

Metal-can cylindrical single-ended package; 3 leads SOT18/13

New & Original PNP switching transistors BCY79IX
