Positive voltage regulators Thermal overload protection Short circuit protection L7805CV

Product Categories

Anterwell Technology Ltd.

Contact Now

Positive voltage regulators Thermal overload protection Short circuit protection L7805CV

Name: Positive voltage regulators Thermal overload protection Short circuit protection L7805CV
Brand: STMICROELECTRONICS
Price: 1 USD

Brand Name : STMICROELECTRONICS

Model Number : L7805CV

Certification : Original Factory Pack

Place of Origin : Original

MOQ : 5pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 290PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

Output current : 1.5 A

Output voltages : 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

protection : Thermal overload protection

TJ : 25°C

Operating junction temperature range : 0 to 150 °C

Contact Now

L78xxC

Positive voltage regulators

Positive voltage regulators Thermal overload protection Short circuit protection L7805CV

Features

■ Output current to 1.5 A

■ Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

■ Thermal overload protection

■ Short circuit protection

■ Output transition SOA protection

Description

The L78xx series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with

external components to obtain adjustable voltage and currents.

Figure 1. Block diagram

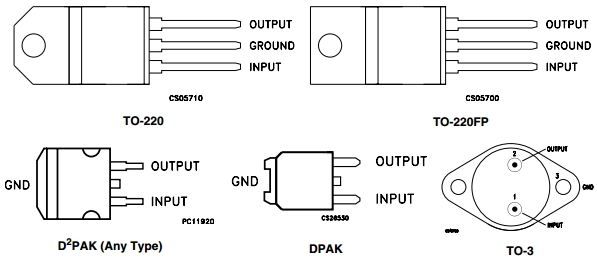

Figure 2. Pin connections (top view)

Positive voltage regulators Thermal overload protection Short circuit protection L7805CV

Absolute maximum ratings

Symbol	Parameter	Value	Unit
V_I	DC input voltage for VO= 5 to 18 V	35	V
V_I	DC input voltage for VO= 20, 24 V	40	V
I_O	Output current	Internally limited
P_D	Power dissipation	Internally limited
T_STG	Storage temperature range	-65 to 150	°C
TOP	Operating junction temperature range For L7800	-55 to 150	°C
TOP	Operating junction temperature range for L7800C	0 to 150	°C
