PNP Silicon Amplifier Transistor 625mW BC557A

Product Categories

Anterwell Technology Ltd.

Contact Now

Name: PNP Silicon Amplifier Transistor 625mW BC557A
Brand: anterwell
Price: 1 USD

Brand Name : anterwell

Model Number : BC557A

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 20000pcs

Delivery Time : 1 day

Packaging Details : please contact me for details

feature 1 : Lead Free Finish/RoHS Compliant

feature 2 : 150°C Junction Temperature

feature 3 : Through Hole Package

feature 4 : Epoxy meets UL 94 V-0 flammability rating

feature 5 : Moisure Sensitivity Level 1

Marking : Type Number

Contact Now

Features

• Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

• 150o C Junction Temperature

• Through Hole Package

• Epoxy meets UL 94 V-0 flammability rating

• Moisure Sensitivity Level 1

• Marking:Type Number

Mechanical Data

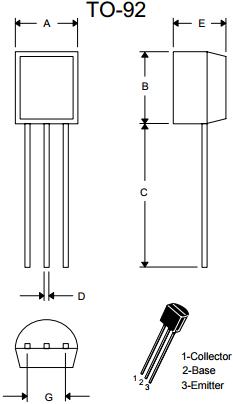

• Case: TO-92, Molded Plastic

• Polarity: indicated as below.

Maximum Ratings @ 25o C Unless Otherwise Specified

Charateristic	Symbol	Value	Unit
Collector-Emitter Voltage BC556 BC557 BC558	V_CEO	-65 -45 -30	V
Collector-Base Voltage BC556 BC557 BC558	V_CBO	-80 -50 -30	V
Emitter-Base Voltage	V_EBO	-5.0	V
Collector Current(DC)	I_C	-100	mA
Power Dissipation@T_A=25°C	P_d	625 5.0	mW mW/°C
Power Dissipation@T_C=25°C	P_d	1.5 12	mW mW/°C
Thermal Resistance, Junction to Ambient Air	R _JA	200	°C/W
Thermal Resistance, Junction to Case	R _JC	83.3	°C/W
Operating & Storage Temperature	T_j , T_STG	-55~150	°C

PNP Silicon Amplifier Transistor 625mW BC557A
