New & Original Silicon NPN Darlington Power Transistors 2SD2390

Anterwell Technology Ltd.
Contact Now

New & Original Silicon NPN Darlington Power Transistors 2SD2390

Brand Name : Anterwell

Model Number : 2SD2390

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8500pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Collector-base voltage : 160V

Collector-emitter voltage : 150V

Emitter-base voltage : 5V

Collector current : 10A

Base current : 1A

Collector power dissipation : 100W

Junction temperature : 150 ℃

Storage temperature : -55~150 ℃

Contact Now

Silicon NPN Darlington Power Transistors 2SD2390

DESCRIPTION New & Original Silicon NPN Darlington Power Transistors 2SD2390

·With TO-3PN package

·Complement to type 2SB1560

·High DC current gain

APPLICATIONS

·Audio ,regulator and general purpose

PINNING

PIN DESCRIPTION
1 Base
2

Collector;connected to

mounting base

3 Emitter

CHARACTERISTICS Tj=25℃ unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V(BR)CEO Collector-emitter breakdown voltage IC=30mA ;IB=0 150 V
VCEsat Collector-emitter saturation voltage IC=7A ;IB=7mA 2.5 V
VBEsat Base-emitter saturation voltage IC=7A ;IB=7mA 3.0 V
ICBO Collector cut-off current VCB=160V IE=0 100 μA
IEBO Emitter cut-off current VEB=5V; IC=0 100 μA
hFE DC current gain IC=7A ; VCE=4V 5000
Cob Output capacitance IE=0 ; VCB=10V;f=1MHz 95 pF
fT Transition frequency IC=2A ; VCE=12V 55 MHz
Switching times
ton Turn-on time

IC=7A;RL=10Ω

IB1=- IB2=7mA

VCC=70V

0.5 μs
ts Storage time 10.0 μs
tf Fall time 1.1 μs

‹ hFE Classifications

O P Y
5000-12000 6500-20000 15000-30000

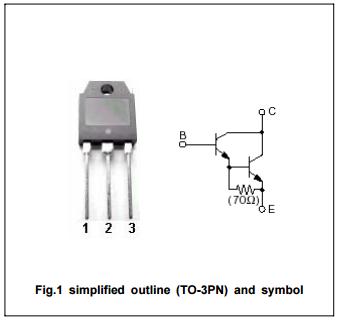

PACKAGE OUTLINE

New & Original Silicon NPN Darlington Power Transistors 2SD2390

New & Original Silicon NPN Darlington Power Transistors 2SD2390
